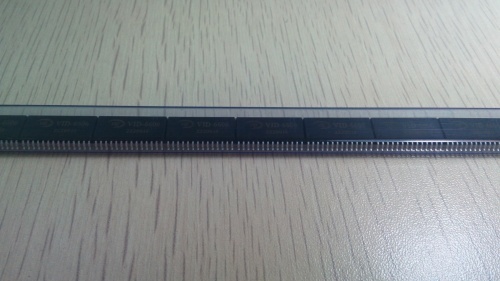

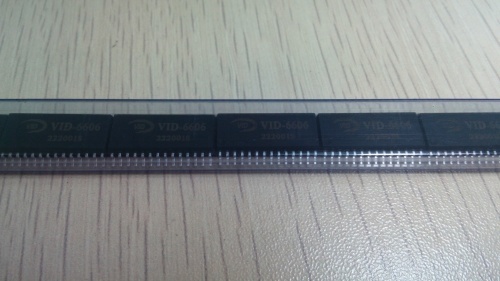

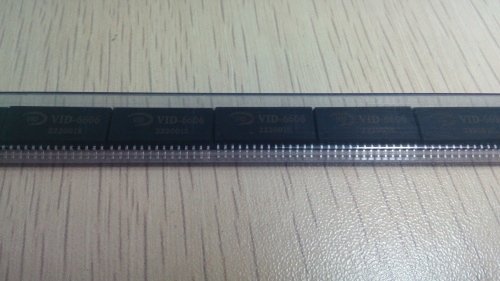

VID6606 is a special integrated circuit for micro stepping motor, which can drive four circuit motors at the same time. In the end f frequency control circuit (SCX) input pulse sequence, can control the stepper motor subdivision rotation output, each pulse output corresponding to the motor shaft rotation of 1/12 degrees, the maximum angular velocity can reach 600 DEG /s.
VID6606 can be used in motor vehicle instrument, industrial instrument and other instruments indicate the occasion, for a phase difference of 60 DEG two-phase permanent magnet instrumentation stepper motor, such as power VID29 XX series, SWITEC, MS-X15.XXX Series, other similar series motors, etc.
